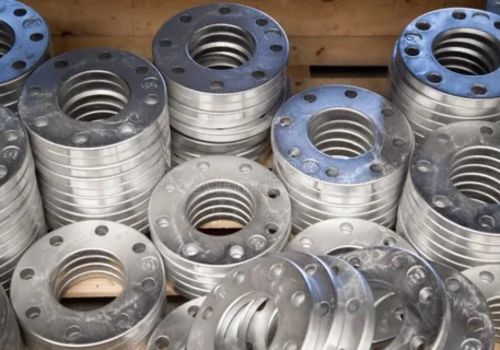

Thongsa Aluminium is a leading manufacturer and supplier of high-quality aluminium products based in Bangkok, Thailand. Specializing in the production of Aluminium 7075 flanges, the company is renowned for delivering precision-engineered solutions to meet diverse industrial needs. With a commitment to excellence, Thongsa Aluminium provides robust, corrosion-resistant, and lightweight aluminium products designed for optimal performance in demanding applications. Their dedication to quality, reliability, and customer satisfaction makes them a trusted partner in the aluminium manufacturing industry.
Aluminium 7075 flanges are made from a high-strength, heat-treated alloy primarily composed of aluminium, zinc (5.1–6.1%), magnesium (2.1–2.9%), copper (1.2–2.0%), and smaller amounts of chromium, silicon, and manganese. Known for its exceptional strength-to-weight ratio, it is one of the strongest aluminium alloys. The mechanical properties of Aluminium 7075 include high tensile strength (up to 700 MPa), excellent fatigue resistance, and good machinability. These flanges are corrosion-resistant, making them ideal for aerospace, military, and high-performance engineering applications where durability and precision are essential.
Standards : ASTM B247 / B/SB 247
Temper : H14
Thickness : 1 Mm To 100 mm
Diameter : Upto 2000 mm
Flange Diameter : 3″ DIA up to 38″ DIA 1500 lbs max
Flanges Form : Hot Rolled Flanges, Cold Rolled Flange, Proof Machined Flanges
Finish :Mill, Customer specific finish
Aluminum Flange Coating : PVC Coated, Color Coated, Polyester, Fluorocarbon, polyurethane and epoxy coating
| UNS | EN | DIN,WNr | JIS | AFNOR | ISO | BS | GOST |
| A97075 | ENAW-AlZn5.5MgCu EN AW-7075 | 3.4365 AlZnMgCu1.5 | 7075 | 7075 A-Z5GU | AlZn6MgCu | 7075 L95 L96 | V95 |
| Weight % | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Each | Total |
| Minimum | 1.20 | 2.10 | 0.18 | 5.10 | ||||||
| Maximum | 0.40 | 0.50 | 2.00 | 0.30 | 2.90 | 0.28 | 6.10 | 0.20 | 0.05 | 0.15 |
| Temper | Tensile | Hardness | ||||
| Ultimate | Yield | Elongation | Brinell | |||
| KSI | MPA | KSI | MPA | % | ||
| T6, T651 | 83 | 572 | 73 | 503 | 11 | 150 |
| T73, T7351 | 73 | 503 | 63 | 434 | 13 | N/A |
Thongsa Aluminium based in Bangkok, Thailand is a renowned manufacturer and supplier of premium aluminium products, including Aluminium Bars, Sheets and Plates, Coils, Chequered Plates, Wires, Pipes, Fittings, Flanges, Forging, Circle, Angles. With a commitment to delivering exceptional quality and service, we cater to diverse industries, offering reliable solutions tailored to specific requirements. Our products are known for their superior strength, corrosion resistance, and precise dimensions. We focus on customer satisfaction by providing an extensive range of aluminium bars designed for structural, industrial, and decorative applications.
Yes, we offer custom sizes for Aluminium 7075 Flanges to meet specific project needs. Our team at Thongsa Aluminium is committed to providing customized solutions for all your requirements. For more details, contact us at sales@thongsaaluminium.com
Aluminium 7075 flanges are widely used in industries requiring high-strength, lightweight materials. Common applications include aerospace, military, automotive, and marine sectors, where they provide excellent resistance to corrosion, stress, and fatigue. These flanges are crucial in the construction of aircraft, helicopters, and other high-performance machinery. Additionally, they are used in structural components, pressure vessels, and heavy-duty equipment. Their ability to withstand extreme conditions and maintain structural integrity makes them ideal for precision-engineered applications that demand both strength and reduced weight.
